Circulation Soft Water Cooling System

Short Description:

The water -water cooling system is composed of heat exchanger with the adoption of the special corrugated structure which makes the soft water form sharp turbulent flow in order to strengthen heat exchange.The system holds the advantages of compact design,small area occupation,convenient dis-mounting and high efficiency of heat exchange.


Product Detail

Product Tags

Water-water cooler

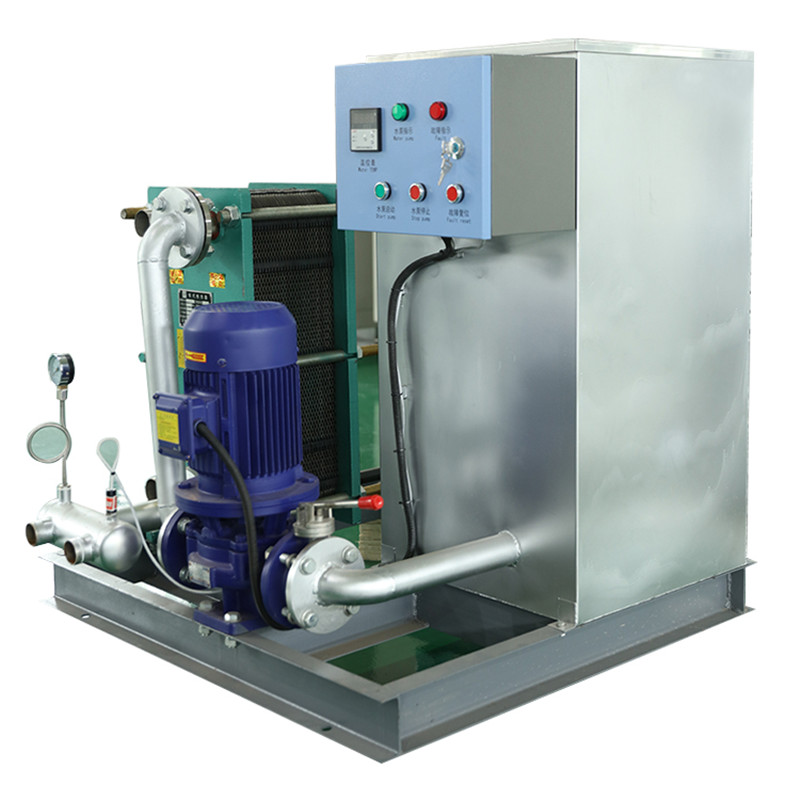

WATER WATER COOLER (2)

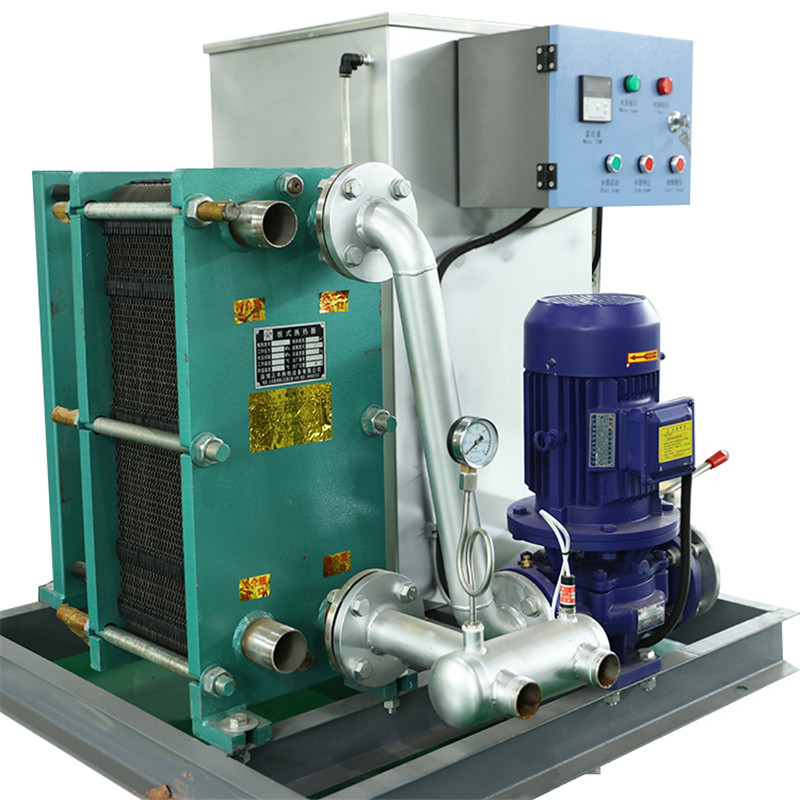

WATER WATER COOLER (1)

The water -water cooling system is composed of heat exchanger with the adoption of the special corrugated structure which makes the soft water form sharp turbulent flow in order to strengthen heat exchange.The system holds the advantages of compact design,small area occupation,convenient dis-mounting and high efficiency of heat exchange. Only with the ability of heat exchange but not cooling,it is necessary to use external circulation system to accomplish the heat exchange.

Air-water cooler

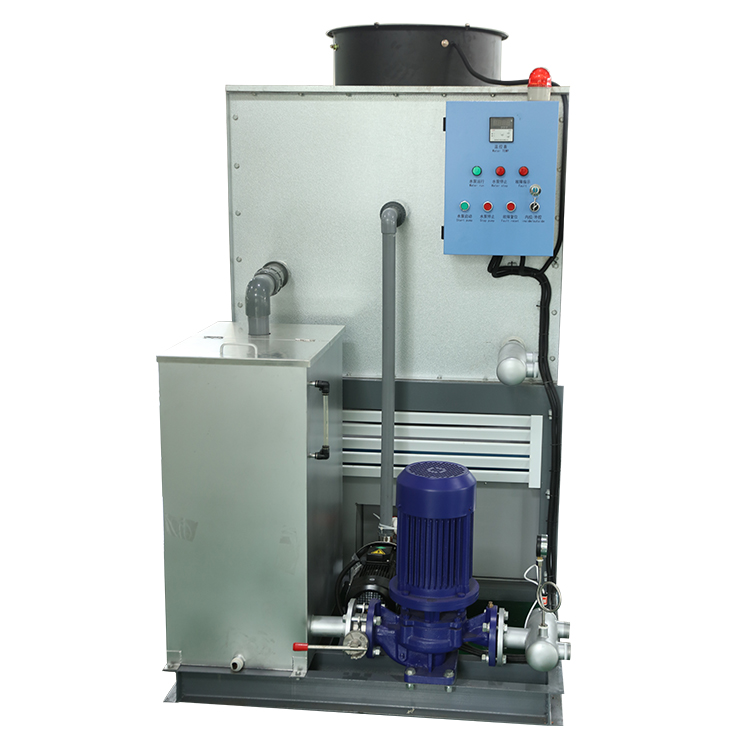

AIR-WATER-COOLER-2

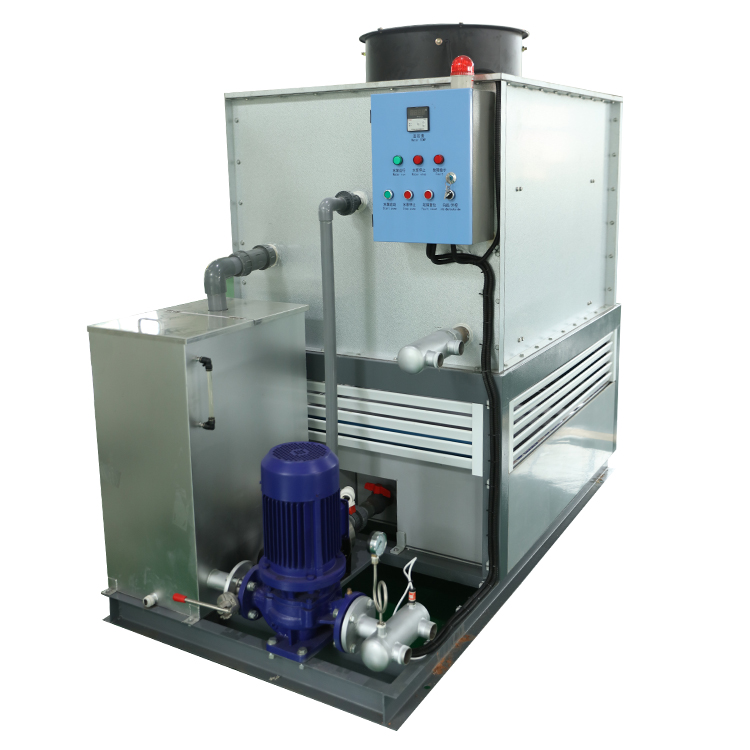

AIR-WATER-COOLER-1

Model GPKL-II circulation soft water cooling system adopts closed cooling tower structure.Cooling soft water flow in sealed water tank and cooling pipes.The inner circulation soft water is cooled by overhead fan and water-spray method using the principle of absorbing heat when evaporation.The spray water store at the bottom of cooling tower,soft water circulate inside the closed cooling tower’s heat dissipation pipe,spray-water spray at pipes ’s surface by spray-water distribution system and sprayer through spray system,some heat is taken by dissipation and soft water temperature inside the pipe go down accordingly. The cut board stops water in hot air and undissipated water, make them flow through PVC heat exchange layer ,the water in the layer is cooled by air,then temperature goes down and fall down to the bottom of the tower.

Model

Refrigeration Capacity(KW)

Heat-exchanging Area

Size (mm)

L

W

H

FST-60

20KW

3 m2

2000

1100

1800

FST-100

30KW

4 m2

2000

1100

2000

FST-150

45KW

5 m2

2000

1100

2000

FST-200

62KW

6 m2

2300

1160

2000

FST-250

78KW

8 m2

2300

1160

2000

FST-300

95KW

10 m2

2360

1160

2200

FST-400

125KW

12 m2

2900

1160

2200

FST-500

156KW

15 m2

2900

1250

2200

FST-600

185KW

18 m2

3000

1250

2200

FST-800

256KW

23 m2

3000

1800

2200

FST-1000

313KW

31 m2

3000

1800

2400

FST-2000

623KW

62 m2

3500

2000

2400

FST-2500

800KW

80 m2

3500

2000

2500

FST-3000

1000KW

100 m2

3500

2000

3000

FST-4000

1300KW

120 m2

4000

2100

3300

FST-5000

1500KW

150 m2

4500

2300

3400

FST-6000

2000KW

180 m2

4500

4000

3500
